SHIPPING RESOURCES

Know your container.
Plan your load.

Reference dimensions for common dry containers, with inside plans and door openings to help you prepare your shipment.

These are example specifications published by Hapag-Lloyd, not guaranteed specifications for every Pongsiri container. Confirm the assigned unit before loading. Container payload capacity is not the same as the permitted road-transport load.

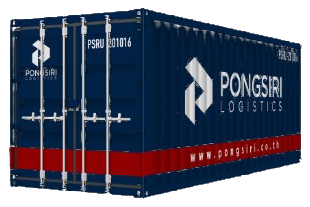

20′ Standard

33.2 m³ nominal capacity

INSIDE PLAN

5,900 L

2,352 W

DOOR OPENING

2,340 W × 2,292 H

Inside height: 2,395

Plans share one scale. The door view is shown separately. Dimensions are millimetres.

Inside length × width × height

5,900 × 2,352 × 2,395 mm

Door opening: width × height

2,340 × 2,292 mm

Capacity

33.2 m³

Example maximum gross weight

30,480 kg

Example tare weight

2,350 kg

Example maximum payload

28,130 kg

Specification source: Hapag-Lloyd · Reference checked 29 Sep 2026

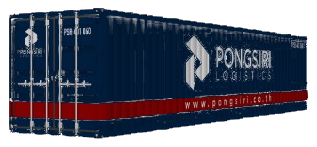

40′ Standard

67.7 m³ nominal capacity

INSIDE PLAN

12,032 L

2,352 W

DOOR OPENING

2,340 W × 2,292 H

Inside height: 2,395

Plans share one scale. The door view is shown separately. Dimensions are millimetres.

Inside length × width × height

12,032 × 2,352 × 2,395 mm

Door opening: width × height

2,340 × 2,292 mm

Capacity

67.7 m³

Example maximum gross weight

32,500 kg

Example tare weight

3,750 kg

Example maximum payload

28,750 kg

Specification source: Hapag-Lloyd · Reference checked 29 Sep 2026

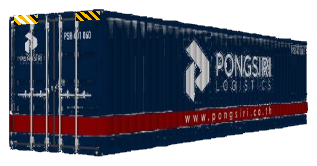

40′ High Cube

76.3 m³ nominal capacity

INSIDE PLAN

12,032 L

2,350 W

DOOR OPENING

2,340 W × 2,597 H

Inside height: 2,700

Plans share one scale. The door view is shown separately. Dimensions are millimetres.

Inside length × width × height

12,032 × 2,350 × 2,700 mm

Door opening: width × height

2,340 × 2,597 mm

Capacity

76.3 m³

Example maximum gross weight

32,500 kg

Example tare weight

3,900 kg

Example maximum payload

28,600 kg

Specification source: Hapag-Lloyd · Reference checked 29 Sep 2026
